Electrode Drying Ovens

images

 Electrode should be kept in a dry, well ventilated store under heated condition where the humidity is below general level.  The efficiency of welding electrode can be seriously injured if the coating of electrode is allowed to get damp due to atmospheric moisture.  Sunshine drying oven ensure longer life of electrode and ensure that demand of customer is fulfilled.



Specification

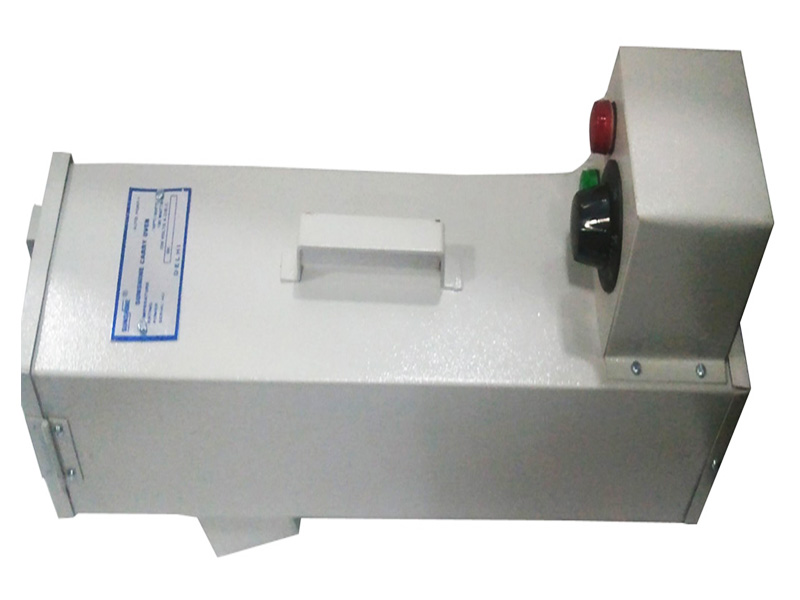

Carry Oven

MODELS

S-AC 5

S-DC 5

Overall Dimension

115mm X 115mm X 500mm

100mm X 100mm X 550mm

Storage Space

62 X 62 X 450

62X62 X 425

Input Supply

230/240V Single Phase AC,50 HZ

80V DC

Load (Input Power)

500 WATT

200WATT

Input Current

5 Amps (Approx)

        2 Amps (Approx)

Temperature

50oC to 300oC

0 to 150oC

Air Circulation

Natural Convection

Natural Convection

Electrode Capacity

5 Kg(Approx)

5 Kg(Approx)








Electrode Drying Ovens

images

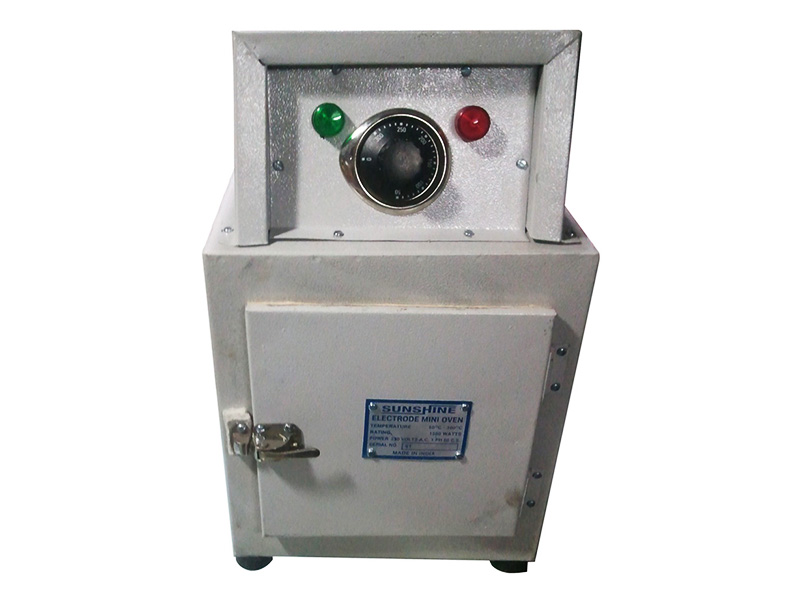

Mini Cabinet

MODELS

AC

Input Supply

230/240V Single Phase AC,50 HZ

Load (Input Power)

1 KV

Input Current

7.5 Amps (Approx)

Temperature

50oC to 300oC

Overall Dimension

300mm X 250mm X 500mm

Storage Space

175 X 175 X 475

Air Circulation

                            Natural Convection

Type Of Control

Thermostatic

Electrode Capacity

10 Kg

No. of Shelves

2




Electrode Drying Ovens

images

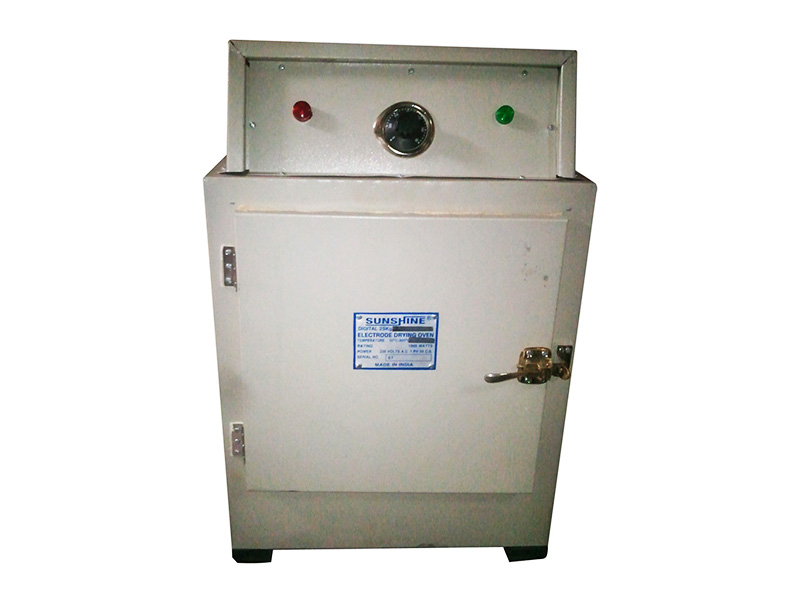

Chamber Oven

MODELS

S-TH 25

S-DI 25

Overall Dimension

450mm X 550mm X 600mm

450mm X 550mm X 600mm

Storage Space

300 X 300 X 480

300 X 300 X 480

Input Supply

230/240V Single Phase AC,50 HZ

230/240V Single Phase AC,50 HZ

Load (Input Power)

1.5 K.V.

1.5 K.V.

Input Current

7.5 Amps (Approx)

7.5 Amps (Approx)

Temperature

50oC to 300oC

50oC to 400oC

Air Circulation

Natural Convection

Natural Convection

Type Of Control

     Thermostatic

Digital

Electrode Capacity

25 Kg

25 Kg

No. of Shelves

5

5
